Your vehicle details
Make: Citroen
Model: Relay
Engine: 2.2
Year: 2007
Fuel: diesel
Please note this is for guidance only
Fitment details for Relay 2.2 HDi 100 250 (2006-2014)

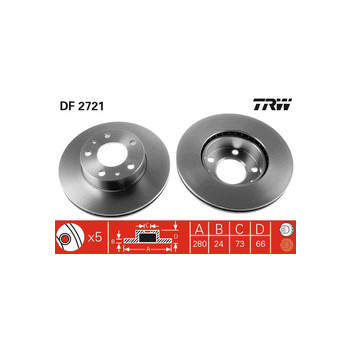

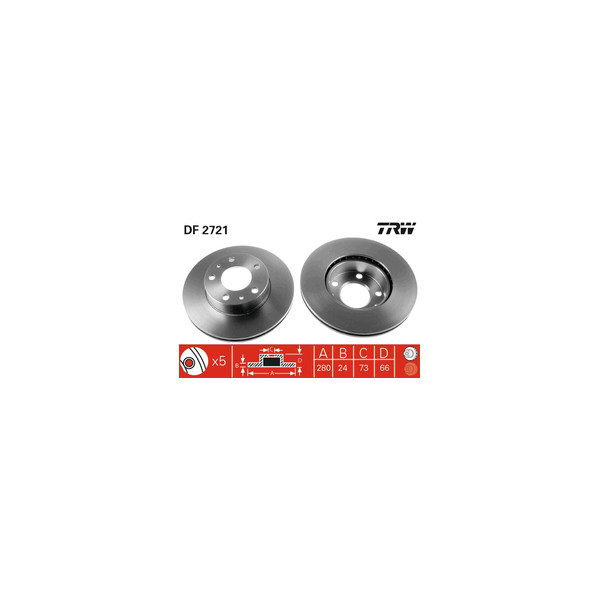

Type | Vented |
---|---|
Description | Brake Disc |
Engine Code | 22DT, 22DT100CV, 22DTPUMA, 4HV, DW12TED, 22DTPUMA, 22DT, 4HM22DT, DW12UTED, DW12TED, 4HU/22DT |
BHP | 100, 120 |
Dia mm | Centre Dia.: 73;Outer Dia.: 280 |
Thickness mm | 24;Min.: 21.9 |
No of Holes | 5 |
Part Detail | Surface: Painted;Colour: Black |
Vehicle Detail | With Steel Wheels;For reduced payload;GVW: 3000,3300 Kg;To Model Yr.: 2012, With Steel Wheels;For reduced payload;GVW: 3000,3300 Kg, With Steel Wheels;For reduced payload;GVW: 3000,3300 Kg;To Model Yr.: 2012 |
Size mm | H: 65.6;Bolt Hole Circ. Dia.: 118;Thread Size: 15,6 |
Reviews
Please log in to leave a Review.
Discs

The brake discs work with the brake pads to slow your Citroen Relay down by applying friction. Over time these wear down and require replacing to give you optimum braking, keeping you and other road users safe. You may find that as the discs wear, you will start to feel a vibration through the steering wheel under braking. This would indciate that your brakes need changing. If you need to replace your discs then orangespanner hold large stocks to suit all budgets.
